| Category | SUV |
| Product Label | Kappa 1.2 MPi Petrol 5-Speed Manual |
| Model Name | VENUE |
| Seating Capacity | 5 |
| Engine | Engine Type | Kappa 1.2 MPi Petrol |
| Displacement (cc) | 1197 | |
| Max. Power (ps / rpm) | 61 (83) @ 6000 | |
| Max. Torque (kg.m / rpm) | 113.8 @ 4000 | |
| Valves of cylinder | - | |
| Number of cylinders | - | |
| Configuration | - | |
| Valvetrain Type | - | |
| Transmission | Transmission Type | 5-Speed Manual |
| Suspension | Front | McPherson Strut with Coil Spring |
| Rear | Coupled Torsion Beam Axle with Coil Spring | |
| Shock Absorber | ||

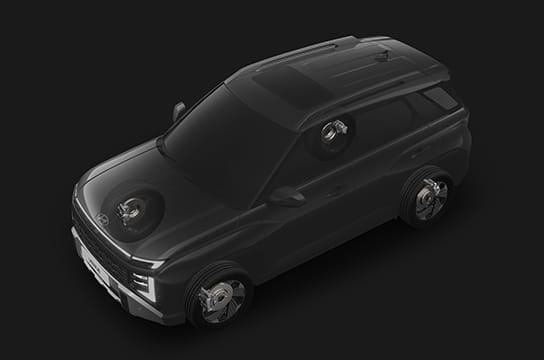

| Brake | Front | Disc |
| Rear | Drum | |
| Fuel Consumption | Fuel Type | Petrol |
| Fuel Tank Capacity ( l ) | 45 |
| Exterior | Overall length (mm) | 3995 |
| Overall width (mm) | 1770 | |
| Overall height (mm) | 1617 | |
| Wheelbase (mm) | 2500 |
| Wheels & Tires | Tire Type | Tubeless |
| Front Tires | 195/65 R15 (D=380.2 mm) Steel (E,S,S+), 215/60 R16 (D=405.6 mm) Styled Wheel (S(O), SX), 215/60 R16 (D=485.6 mm) Diamond Cut Alloy (SX+, SX(O) Exe, SX(O)) | |
| Rear Tires | 195/65 R15 (D=380.2 mm) Steel (E,S,S+), 215/60 R16 (D=405.6 mm) Styled Wheel (S(O), SX), 215/60 R16 (D=485.6 mm) Diamond Cut Alloy (SX+, SX(O) Exe, SX(O)) | |
| Spare Tyre | 195/ 65 R15 (D=380.2 mm) Steel (all trims) |
| Engine and trim plan | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|
| Kappa 1.2 l MPi Petrol | MT | MT | - | MT | - | - | - | |
| Kappa 1.0 l Turbo GDi Petrol | - | - | iMT/DCT | - | MT/ iMT/DCT | - | MT/ iMT | |
| U2 1.5 l CRDi Diesel | - | - | MT | - | MT | MT | MT | |
| Feature | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|
| Airbag | Driver & Passenger | S | S | S | S | S | S | S |
| Side & Curtain | - | - | - | - | - | - | S | |
| ABS with EBD | S | S | S | S | S | S | S | |
| Electronic Stability Control (ESC) | - | - | DCT only | - | DCT only | S | S | |
| Vehicle Stability Management (VSM) | - | - | DCT only | - | DCT only | S | S | |
| Hill Assist Control (HAC) | - | - | DCT only | - | DCT only | S | S | |
| Parking Assist (rear) | Parking Sensors | S | S | S | S | S | S | S |
| Camera w/ guidelines | - | - | - | S | S | S | S | |
| Projection Fog Lamps | - | - | - | S | S | S | S | |
| Inside Rear View Mirror | Day and Night Mirror | S | S | S | S | S | S | S |
| Telematics switches (SOS, RSA & BlueLink) | - | - | - | - | DCT only | - | S | |
| Automatic Headlamps | - | - | - | S | S | S | S | |
| Headlamp Escort Function | - | S | S | S | S | S | S | |
| Tyre Pressure Monitoring System (Highline) | - | - | - | - | DCT only | S | S | |
| Central Locking | S | S | S | S | S | S | S | |
| Impact Sensing Auto Door Unlock | S | S | S | S | S | S | S | |
| Speed Sensing Auto Door Lock | S | S | S | S | S | S | S | |
| Keyless Entry | Foldable Key | - | S | S | S | S | - | - |
| Smart Key | - | - | - | - | DCT only | S | S | |
| Rear Defogger with Timer | - | S | S | S | S | S | S | |
| Seatbelt Reminder (Driver + Passenger) | S | S | S | S | S | S | S | |
| High Speed Alert | S | S | S | S | S | S | S | |
| Seat belt pretensioners - Driver & Passenger | S | S | S | S | S | S | S | |
| Immobilizer | S | S | S | S | S | S | S | |
| ISOFIX | S | S | S | S | S | S | S | |
| Burglar Alarm | - | - | - | - | DCT only | - | S | |
| Feature | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|
| Headlamps | Halogen Lamps | S | S | - | - | - | - | - |
| Projector Headlamps | - | - | S | S | S | S | S | |
| Cornering Lamps | - | - | S | S | S | S | S | |
| LED DRL & Positioning Lamps | - | - | S | S | S | S | S | |

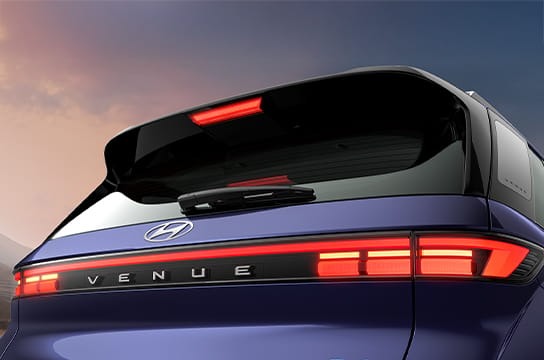

| LED Tail lamps with Crystal Effect | - | - | - | S | S | S | S | |

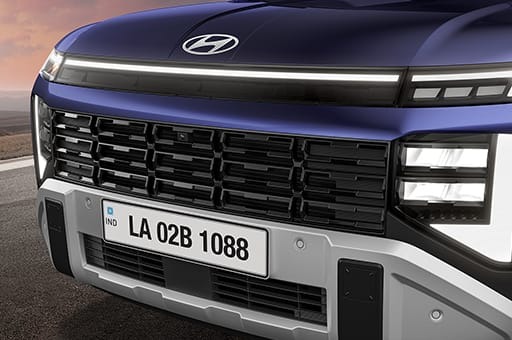

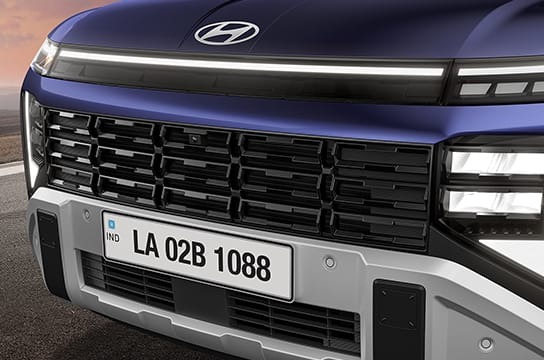

| Dark Chrome Front Grille | - | S | S | S | S | S | S | |
| Body Colored | Bumpers | S | S | S | S | S | S | S |
| Outside Door Mirrors | - | S | S | S | S | S | S | |
| Outside Door Handles | S | S | S | S | MT/iMT | - | - | |
| Chrome Finish Outside Door Handles | - | - | - | - | DCT only | S | S | |
| Silver Skid Plates (Front & Rear) | S | S | S | S | S | S | S | |
| Sporty Roof Rails | - | S | S | S | S | S | S | |
| Turn Indicators on Outside Mirrors | - | - | - | S | S | S | S | |
| Roof Antenna | Micro | - | S | S | - | - | - | - |
| Shark fin | - | - | - | S | S | S | S | |
| Full Wheel Covers | S | S | - | S | - | - | - | |
| R16 (D=405.6 mm)Dual Tone Styled Wheels | - | - | S | - | MT/iMT | - | - | |

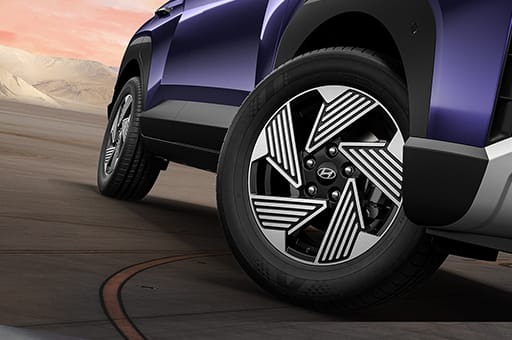

| R16 (D=405.6 mm)Diamond Cut Alloy Wheels | - | - | - | - | DCT only | S | S | |
| Feature | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|

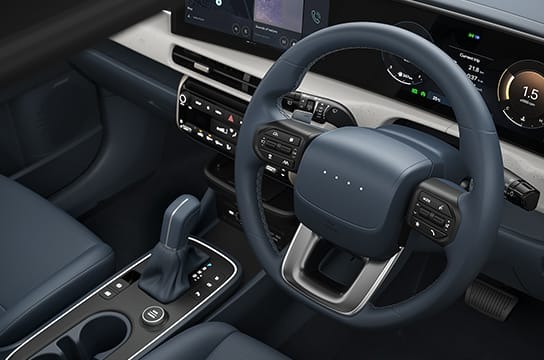

| D-Cut Steering | - | - | - | - | DCT only | S | S | |
| Black Single Tone Theme | S | S | S | S | S | S | S | |

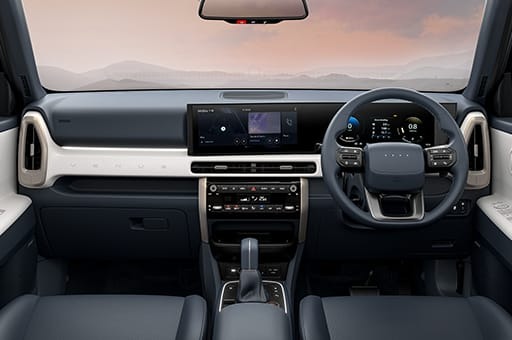

| Khaki Dual Tone Theme | - | S* | S* | S* | S* | S* | S* | |
| Seat Upholstery | Fabric | S | S | S | S | S | S | - |
| Leather^ + Fabric Combi | - | - | - | - | Dual Tone | - | S | |
| Leather^ Pack | Steering Wheel | - | - | - | S | S | S | S |
| Gear Knob | - | - | - | - | S | S | S | |
| Front Center Armrest | - | - | - | - | Dual Tone | S | S | |
| Door Armrest | - | - | - | - | Dual Tone | S | S | |
| Metal Finish Inside Door Handles | S | S | S | S | S | S | S | |
| Front & Rear Door Map Pockets | S | S | S | S | S | S | S | |
| Seatback Pocket (Passenger Side) | - | S | S | S | S | S | S | |
| Feature | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|
| Infotainment System | 2-DIN Integrated Audio with FM/AM & USB | - | S | S | - | - | - | - |
| 20.32cm (8") Touchscreen Display | - | - | - | S | MT/iMT | S | - | |
| 20.32cm (8")Touchscreen AVNT with HD Display | - | - | - | - | DCT only | - | S | |
| Hyundai BLUE LINK | - | - | - | - | DCT only | - | S | |
| Smartphone Connectivity | Apple Carplay*** | - | - | - | S | S | S | S |
| Android Auto*** | - | - | - | S | S | S | S | |
| Voice Recognition*** | - | - | - | S | S | S | S | |

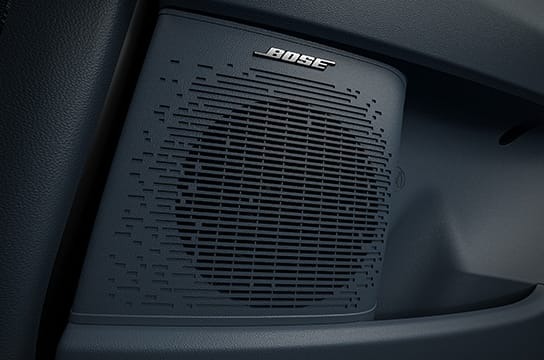

| Front & Rear Speakers | - | S | S | S | S | S | S | |
| Front Tweeter | - | S | S | S | S | S | S | |
| Bluetooth Connectivity | - | S | S | S | S | S | S | |
| Arkamys Sound Mood | - | - | - | S | S | S | S | |
| Steering Wheel with Audio & Bluetooth Controls | - | S | S | S | S | S | S | |
| Hyundai iblue^^ | - | S | S | S | S | S | S | |
| Feature | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|
| Smart Electric Sunroof | - | - | - | - | S | S | S | |

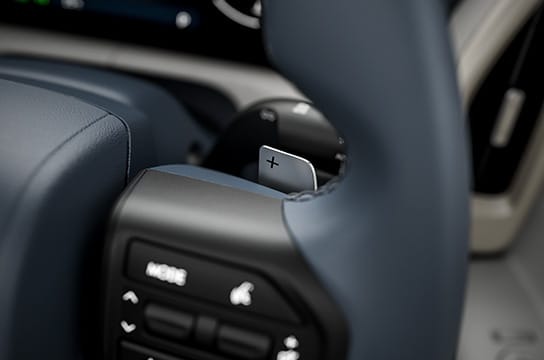

| Paddle Shifters | - | - | - | - | DCT only | - | - | |
| Push Button Start/Stop | - | - | - | - | DCT only | S | S | |
| Power Windows | Front | S | S | S | S | S | S | S |
| Rear | - | S | S | S | S | S | S | |
| Driver Side Auto Up-Down | - | S | S | S | S | S | S | |
| Driver side Power Window Switch Illumination | - | S | S | S | S | S | S | |
| Air conditioning | Manual | S | S | S | - | - | - | - |
| FATC with Digital Display | - | - | - | S | S | S | S | |
| Eco Coating Technology | S | S | S | S | S | S | S | |
| Motor Driven (Electric) Power Steering | S | S | S | S | S | S | S | |
| Outside Mirrors | Electrically Adjustable | - | S | S | S | S | S | S |
| Electric Folding | - | - | - | S | S | S | S | |
| Rear AC vents | - | S | S | S | S | S | S | |
| Air Purifier | - | - | - | - | DCT only | - | S | |
| Wireless Phone Charger | - | - | - | - | DCT only | - | S | |
| Driver Rear View Monitor | - | - | - | S | S | S | S | |
| Glovebox Cooling | - | - | - | S | S | S | S | |
| Tilt Steering | S | S | S | S | S | S | S | |
| Cruise control | - | - | - | - | S | S | S | |
| Front Center Armrest with Storage | - | S | S | S | S | S | S | |
| Sliding Front Armrest | - | - | - | - | - | - | S | |
| Rear Center Armrest with Cup Holder | - | - | - | - | - | - | S | |
| Clutch Footrest | S | S | S | S | S | S | S | |
| Passenger Side Vanity Mirror | - | S | S | S | S | S | S | |
| USB Charger | - | - | - | S | S | S | S | |
| Front Power Outlet | S | S | S | S | S | S | S | |
| Rear Power Outlet | - | S | S | S | S | S | S | |
| Front Map Lamps | - | - | - | - | S | S | S | |
| Intermittent Variable Front Wiper | S | S | S | S | S | S | S | |
| Rear Wiper & Washer | - | - | - | - | - | S | S | |
| Alternator Management System | S | S | S | S | S | S | S | |
| Lane Change Indicator | S | S | S | S | S | S | S | |
| Rear Parcel Tray | - | S | S | S | S | S | S | |
| Luggage Lamp | - | S | S | S | S | S | S | |
| Battery Saver | S | S | S | S | S | S | S | |
| Feature | E | S | S(O) | S+ | SX# | SX(O) Exe | SX (O) | |
|---|---|---|---|---|---|---|---|---|
| Height Adjustable Driver Seat | - | - | - | S | S | S | S | |
| Front Seat Adjustable Headrest | S | S | S | S | S | S | S | |
| Rear Seat Headrest | Integrated | S | S | S | - | - | - | - |
| Adjustable | - | - | - | S | S | S | S | |
| 60:40 Split Rear Seat | - | - | - | - | - | - | S | |
